What is NVMe and why is it important? A Technical Guide

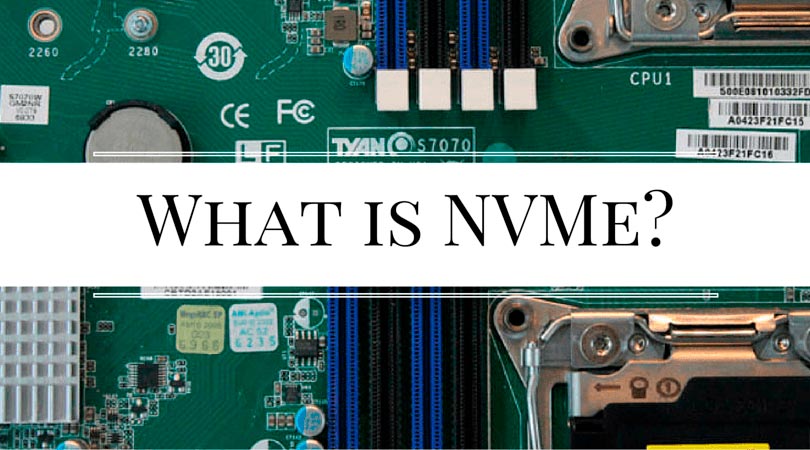

WHAT IS NVMe ?

NVMe stands for Non-Volatile Memory Express. It is a protocol designed for accessing high-speed storage media over the PCIe (Peripheral Component Interconnect Express) interface. NVMe is specifically optimized for NAND-based flash storage technologies, such as Solid State Drives (SSDs), which provide non-volatile storage in a highly efficient manner.

The Evolution of NVMe

The evolution of Non-Volatile Memory Express (Non-Volatile Memory Express) has been characterized by a transformative journey in storage technology, addressing the limitations of traditional protocols and propelling storage performance to new heights. Introduced in 2011 to unlock the full potential of NAND-based flash storage, Non-Volatile Memory Express quickly gained momentum with the release of its 1.0 specification in 2014.

Its widespread adoption in consumer devices and enterprise-grade solutions ensued, marked by the introduction of form factors like U.2 and the compact M.2. The advent of PCIe Gen 4.0 in 2017 ushered in a new era of faster data transfer rates, and subsequent support for PCIe Gen 5.0 in 2019 further elevated Non-Volatile Memory Express capabilities.

This technological progression has solidified Non-Volatile Memory Express role as the standard in enterprise and data center storage, meeting the demands of high-performance computing environments. Ongoing efforts in the 2020s focus on standardization, incorporating innovations like storage-class memory, and promising a future where NVMe continues to shape the landscape of storage solutions with unprecedented speed and efficiency.

How Do NVMe Commands Work?

NVMe (Non-Volatile Memory Express) commands work by providing a standardized protocol for communication between the host system (typically a computer or server) and the Non-Volatile Memory Express storage device (usually an SSD). This protocol enables the efficient and high-speed exchange of data and commands, optimizing the performance of NAND-based flash storage. Here’s a brief overview of how NVMe commands work:

1. Command Queues:
   • Non-Volatile Memory Express supports multiple command queues, allowing for parallelism in command execution. Each queue can handle a specific set of commands simultaneously, enhancing overall efficiency.
2. Submission Queue (SQ):
   • The host system sends commands to the Non-Volatile Memory Express storage device through the Submission Queue. These commands may include read requests, write requests, and administrative commands.
3. Completion Queue (CQ):
   • After processing the commands, the Non-Volatile Memory Express device places the results in the Completion Queue. The Completion Queue notifies the host system about the status and completion of each command.
4. Command Sets:
   • Non-Volatile Memory Express defines various command sets, each serving a specific purpose. Common commands include read and write operations, as well as administrative commands for device management and configuration.
5. NVMe Commands:
   • Examples of Non-Volatile Memory Express commands include:
     • Read Command (opcode 02h): Requests the Non-Volatile Memory Express device to read data from the specified location.
     • Write Command (opcode 01h): Requests the Non-Volatile Memory Express device to write data to the specified location.
     • Identify Command (opcode 06h): Retrieves information about the Non-Volatile Memory Express device, such as its capabilities and features.
6. Parallelism and Efficient Processing:
   • Non-Volatile Memory Express takes advantage of the parallelism provided by the PCIe interface. Multiple queues and command sets can be processed concurrently, allowing for efficient use of system resources.
7. Direct Memory Access (DMA):
   • Non-Volatile Memory Express employs Direct Memory Access for data transfer between the host system’s memory and the NVMe device. This direct communication path helps minimize latency and maximize data transfer rates.
8. Asynchronous Events:
   • Non-Volatile Memory Express supports asynchronous events that can notify the host system about specific occurrences, such as completion of a command or changes in the status of the NVMe device.
9. Admin Commands:
   • Administrative commands are used for tasks such as formatting the device, updating firmware, and configuring features. These commands are essential for managing and maintaining NVMe storage devices.

In summary, Non-Volatile Memory Express commands operate through a well-defined protocol that facilitates efficient communication between the host system and the Non-Volatile Memory Express storage device. The use of multiple queues, parallel processing, and direct memory access contributes to the high-speed, low-latency performance that Non-Volatile Memory Express is known for in modern storage solutions.

Why NVMe Gets The Most Performance From Multicore Processors

NVMe (Non-Volatile Memory Express) gets the most performance from multicore processors due to its design that takes advantage of parallelism and efficient utilization of system resources. Here are key reasons why Non-Volatile Memory Express excels with multicore processors:

1. Parallel Command Processing:
   • Non-Volatile Memory Express supports multiple command queues, allowing for parallel command processing. Each core of a multicore processor can independently submit commands to different queues, enabling concurrent execution and reducing command processing bottlenecks.
2. Queue Depth and Multithreading:
   • Non-Volatile Memory Express has a high queue depth capability, meaning that each queue can hold a large number of outstanding commands. Multicore processors can utilize multithreading to keep multiple queues busy simultaneously, maximizing the throughput of the storage subsystem.
3. Parallelism in Data Paths:
   • Non-Volatile Memory Express leverages the PCIe interface, which provides multiple lanes for data transfer. Each lane can be utilized independently, enabling parallel data paths. With multicore processors, multiple cores can simultaneously access the storage device through these parallel data paths, resulting in increased overall bandwidth.
4. Direct Memory Access (DMA):
   • NVMe employs DMA for direct communication between the storage device and system memory. Each core of a multicore processor can independently initiate DMA transfers, allowing for efficient data movement without requiring the intervention of a central controller.
5. Low Latency and Efficient Protocols:
   • NVMe is designed with a focus on low latency and efficient command processing. The streamlined command set and reduced protocol overhead enable each core to issue commands and process responses quickly, contributing to low-latency storage operations.
6. Scalability with PCIe Versions:
   • NVMe supports the PCIe interface, and newer PCIe versions (such as PCIe Gen 4.0 and Gen 5.0) provide increased bandwidth. Multicore processors can take full advantage of these higher data transfer rates, scaling the storage performance as the number of cores and PCIe version increase.
7. Asynchronous Events:
   • NVMe supports asynchronous events that notify the host system about specific occurrences. Multicore processors can efficiently handle these events in parallel, ensuring that the system remains responsive and can quickly respond to changes in the status of the NVMe device.
8. Optimized for Modern Workloads:
   • With the rise of parallelizable workloads in modern applications, such as data analytics, virtualization, and database operations, NVMe’s ability to leverage multicore processors aligns well with the demands of these workloads.
